High-intensity Type A Obstruction Light GS-HI/O manufacturer from China Hongkong Green Source Light Equipment Co,Ltd,

Price:	500.0 USD
Payment Terms:	T/T,WU,Paypal
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: GS-HI/O

Packing: Carton

Brand Name: Grenn Source

Means of Transport: Ocean,Land,Air

Delivery Date: 3 days after payment

Control circuit has strong ability of lighting protection and with anti-surge protection,which can adapt to extremely bad working environment.

Description

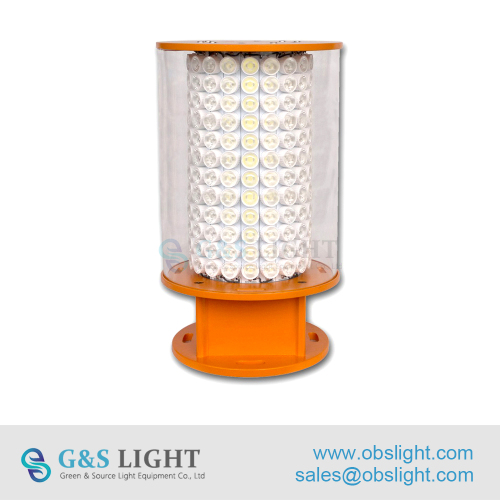

GS-HI/O High-intensity Type A Aviation Obstruction Light adopts structure of aluminum alloy of the lacquer that bake,it has the specific of light weight and corrosion resistance .

The light source adopts self research and development dedicated LED chip packing,it has the specific of high light intensity ,low power consumption ,long service life.Lampshade adopts borosilicate glass ,which has super power of corrosion resistance ,anti-UV ,shock resistance ;Control circuit has strong ability of lighting protection and with anti-surge protection,which can adapt to extremely bad working environment.This equipment contain lots of working mode and can be customized according the customers requirement .

Specification:

Name	Parameter
Mode	GS-HI/O
FAA Standard:	L-856
Light intensity:	2000~200000cd(±25%)
Power Supply	AC220V AC120V
Power Supply Frequency	50HZ～60HZ
Flash rate:	40times/minute
Continuous Working Time	70ms
Service life of light source:	≥10years
Power consumption	≤100W / 750W
Overall size(mm):	234mm×234mm×406mm
Installation size(mm):	180mm×180mm×M10
Vertical degree:	7°
Horizontal degree:	360°
Optically Controlled Ambient Brightness	50cd-500cd/m2
Weight:	16Kg
Emitting color	White
Ambient temperature:	-40℃～55℃
Wind load:	80m/s
Protection standard:	IP68
LED quantity	240×10W
Background Intensity	Obstacle Light Effective Luminous Intensity
500cd/m2	200,000cd±25%
50~500cd/m2	20,000cd±25%
＜50 cd/m2	2,000cd±25%

Function & Features

l,Advanced optical projection lens design, light emitting angle follow FAA standard.

2,With function of automatic light-control function, it can change light intensity class on daytime, rainy day and at night.

3,LED light source, its service life can above 100000 hours.

4,Low voltage design, high safety for maintenance and utilization.

5,Anti-shock,lightning protection, light fastness, anti-sleet,resist typhoons, the hail weather.

6,Adopts constant current circuit design, the longer service life.

7,Adopts changeable LED light source that can reduce the maintenance charge in the future.

8,No radio frequency (rf), no electromagnetic interference.

9,With lighting protection function

10,Adopts transparent glass cover which has the characteristics of high transmittance and chemical resistance,under the bad environment there will be no discoloration and cracking phenomenon.

Usage notice

l,Don't use any out of nominal voltage,or will destroy the equipment.

2,Do not open it if the device is out of operation, in order not to be hurt by the internal high pressure.

3,After finished the installation, the personnel must check whether the device is in a good waterproof processing and whether the screw spikes are tightened.

4,Non-professional workers can not do the device maintenance, in order not to expand the error and be hurt.

Application

Block

Airport

Chimney

Iron towers

Bridge

Communication towers

High-rise Buildings
